Slot-die head for cast film extrusion


Year of manufacture:

Film width:
up to 600 mm

as good as new

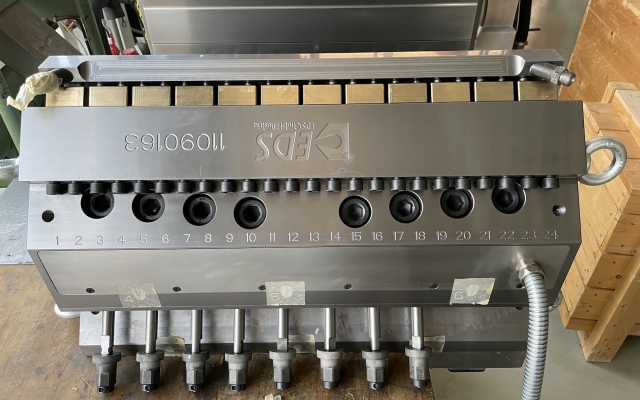

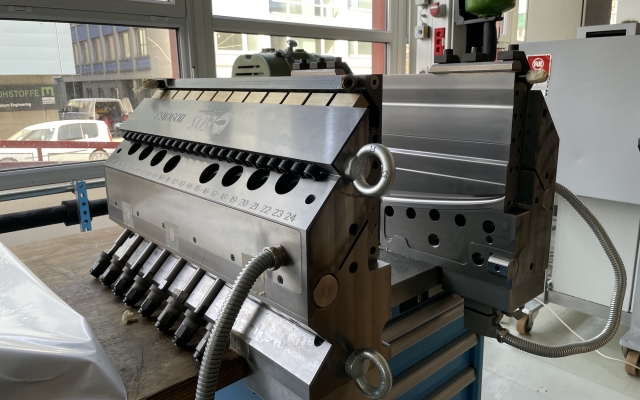

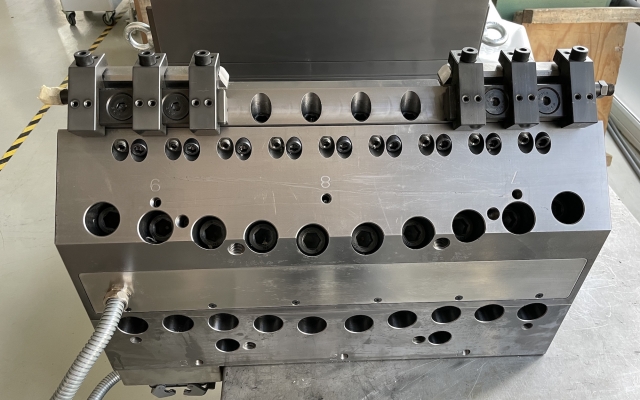

3-channel slot-die head EDS FSK-600 with flex-lip (Reifenhauser)

Output rate: 40 – 50 kg/h
Die lip adjustment via screws and retention bar in the main layer
Film width: max. 600 mm
Film thickness: 0.1 – 3.0 mm

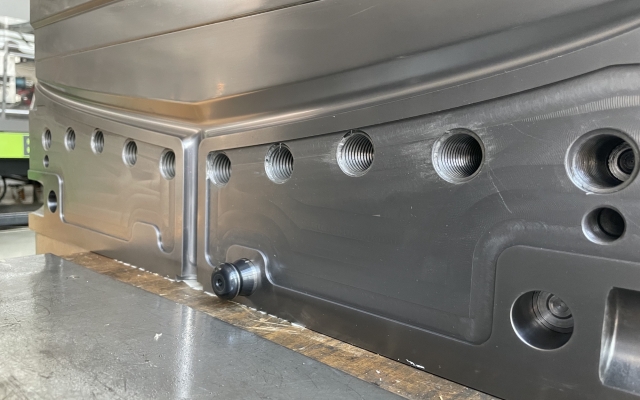

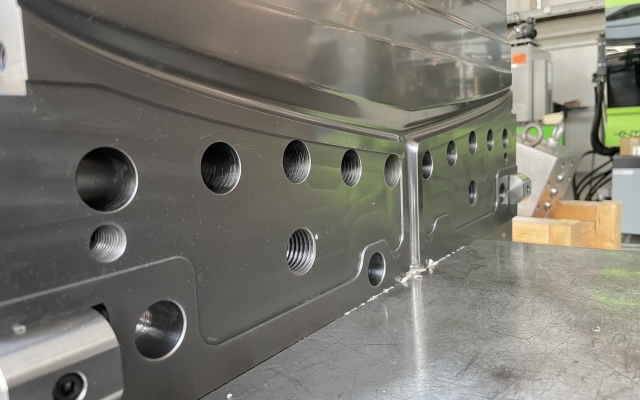

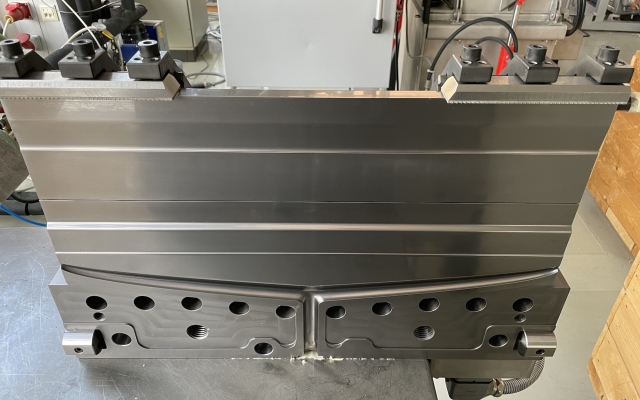

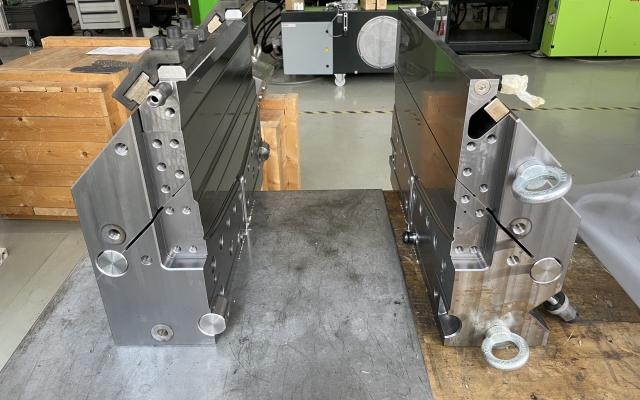

3 computer calculated hanger manifolds for optimized melt distribution
Split: A 10-15%, B 70-80%, C 10-15%
Die lip prepared for liquid temperature control
9 x heating zones
Total electrical power for slot-die: 18 kW (0.5 kW x 36)
Completely wired for 240 V /single phase
Dimensions for die (l x b x h): 450 x 650 x 400 mm, weight: 760 kg

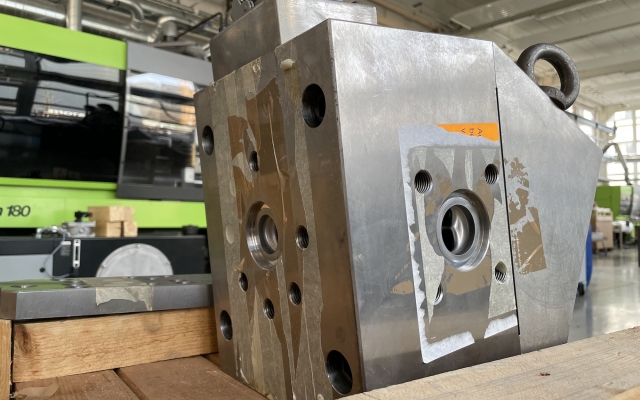

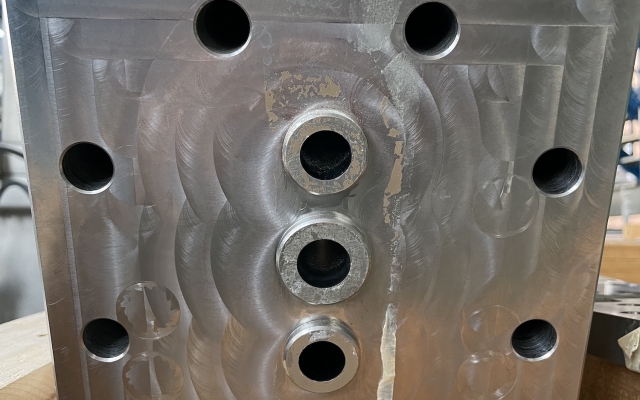

Co-extrusion feedblock for one middle and two outer layers
Dimensions of feedblock (l x b x h): 320 x 210 x 400 mm

Tool-stell 1.2311 - top quality
All flow areas are chrome-plated (25-30 mm)

unused, as good as new
