Double-strand Calibration table & Caterpillar / Saw combination
Year of manufacture:
2012
Running hours:
500 h only!!
Condition:
Very good
![](https://www.mextrusion.com/wp-content/uploads/2017/03/IMG_9305-640x400.jpg)
![](https://www.mextrusion.com/wp-content/uploads/2017/03/Table-front-view-2-640x400.jpg)
![](https://www.mextrusion.com/wp-content/uploads/2017/03/Table-motors-2-640x400.jpg)
![](https://www.mextrusion.com/wp-content/uploads/2017/03/View-rare-2-640x400.jpg)
![](https://www.mextrusion.com/wp-content/uploads/2017/03/View-front-640x400.jpg)
![](https://www.mextrusion.com/wp-content/uploads/2017/03/Caterpillar-2--640x400.jpg)
![](https://www.mextrusion.com/wp-content/uploads/2017/03/Caterpillar-pads-640x400.jpg)
![](https://www.mextrusion.com/wp-content/uploads/2017/03/Saw-2-640x400.jpg)
![](https://www.mextrusion.com/wp-content/uploads/2017/03/Saw-3-640x400.jpg)
![](https://www.mextrusion.com/wp-content/uploads/2017/03/Switch-cabinet-640x400.jpg)
Description:
Double-strand calibration table EXTRUNET:
Clamping length: 6.000 mm
Motor driven adjustment in all 3 directions
2 x C-rails with middle distance each 320 mm
4 x water pumps (1.1 kW), 2 x 30 water connections each side
8 x vacuum pump (5.5 kW, 4.5 kW, 2 x 3 kW, 4 x 2 kW), 8 x 10 vacuum connections
1 x cyclone tank incl. cascade

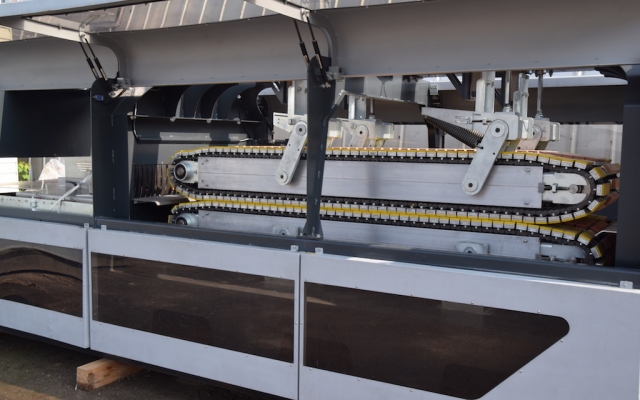

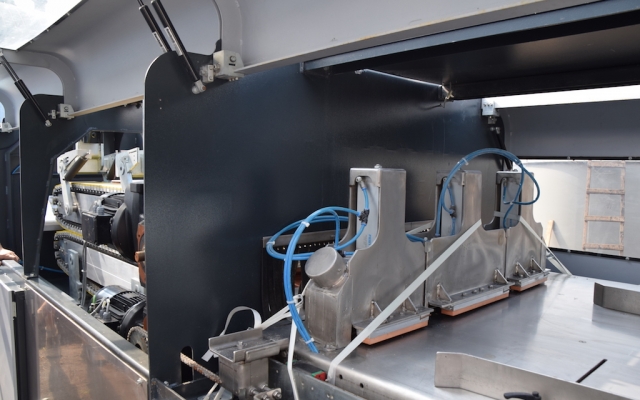

Triple belt haul-off incl. travelling saw EXTRUNET:
Contact length of caterpillars: 2.200 mm
Contact width of each caterpillar: 1 x 340 mm, 2 x 180 mm, total contact width 900 mm
Haul-off speed: up to 5 m/min
Without swarf extraction
Overall dimensions (L x W x H): 13.737 x 1.833 x 2.145 mm
