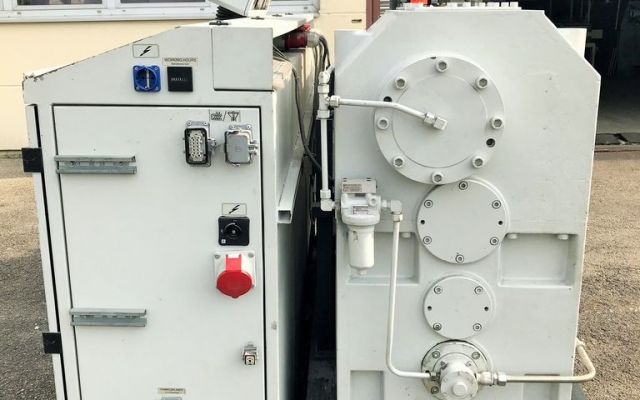

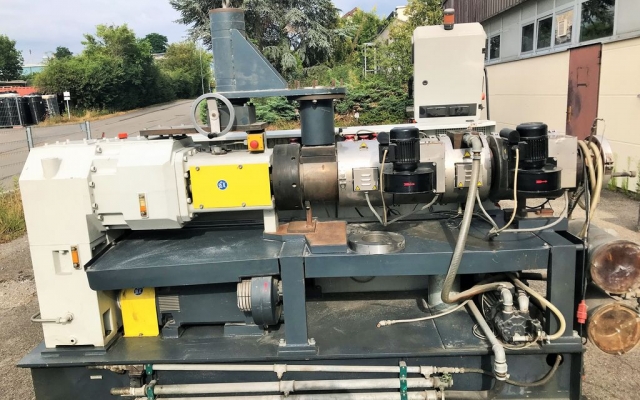

Conical twin screw extruder CINCINNATI Titan 58F

Motor: 39 kW (DC-drive), screw speed: 43 rpm

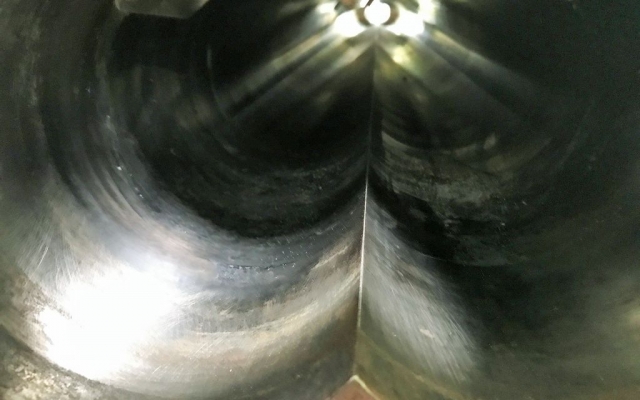

Barrel standard nitrided with heating/air cooling (excellent condition)

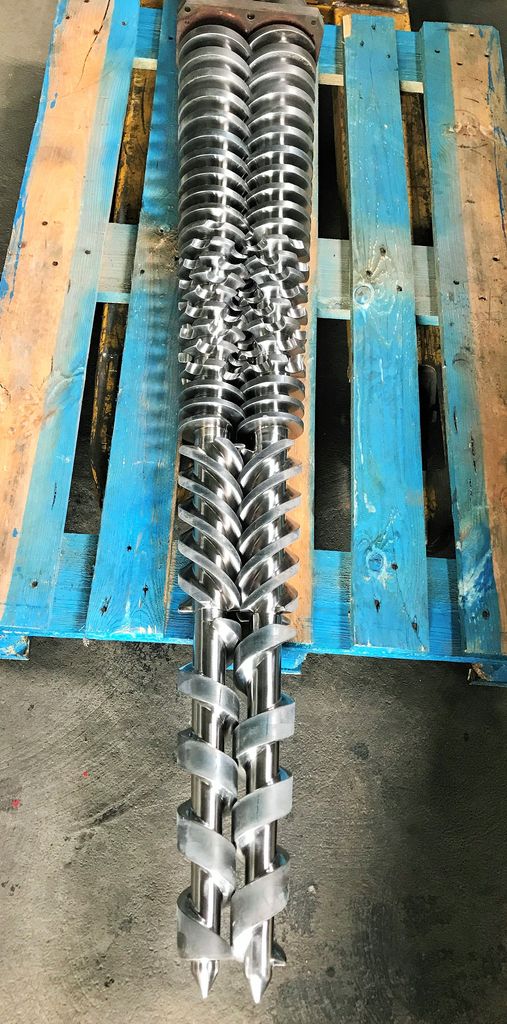

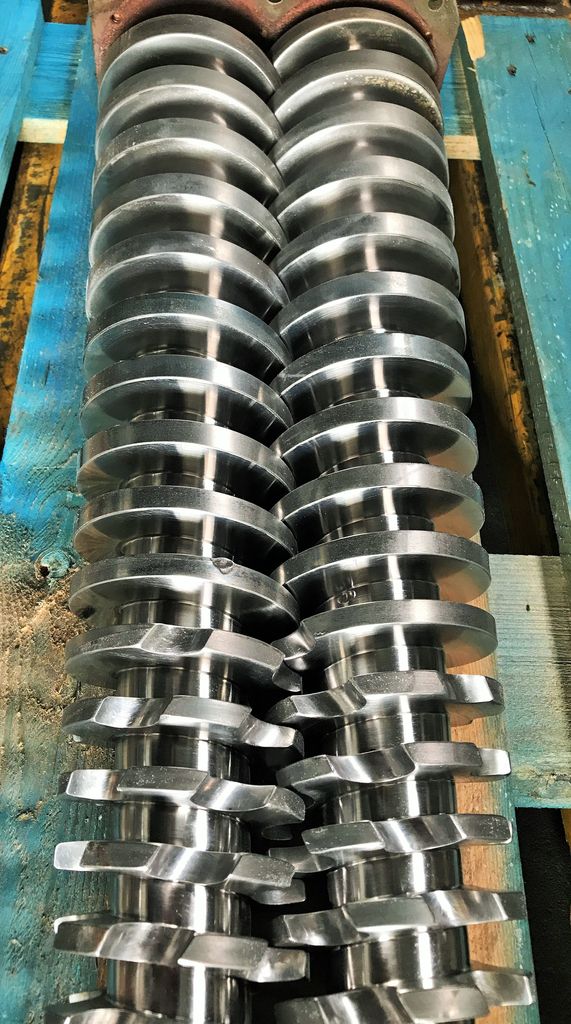

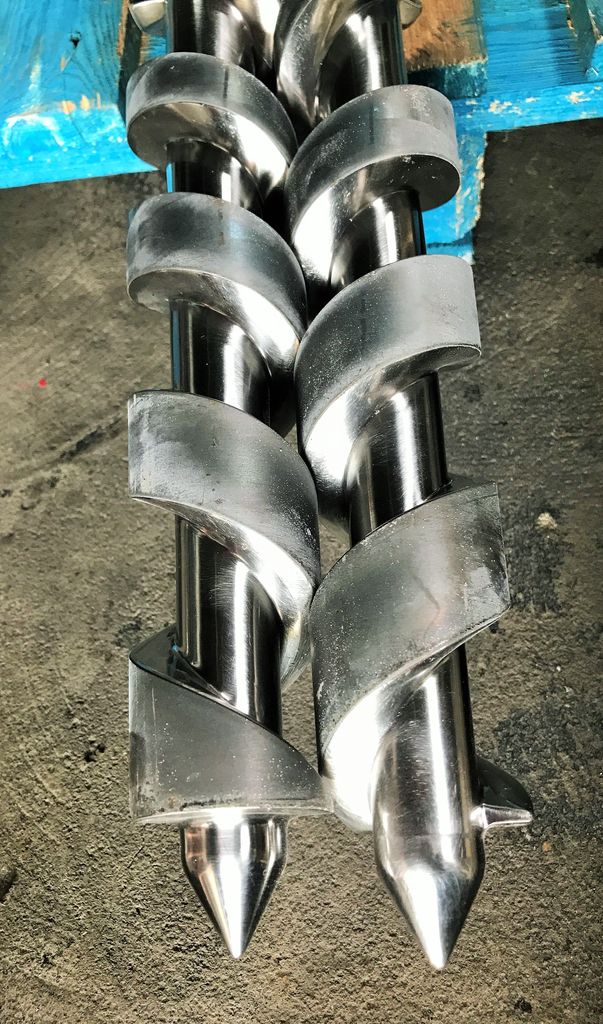

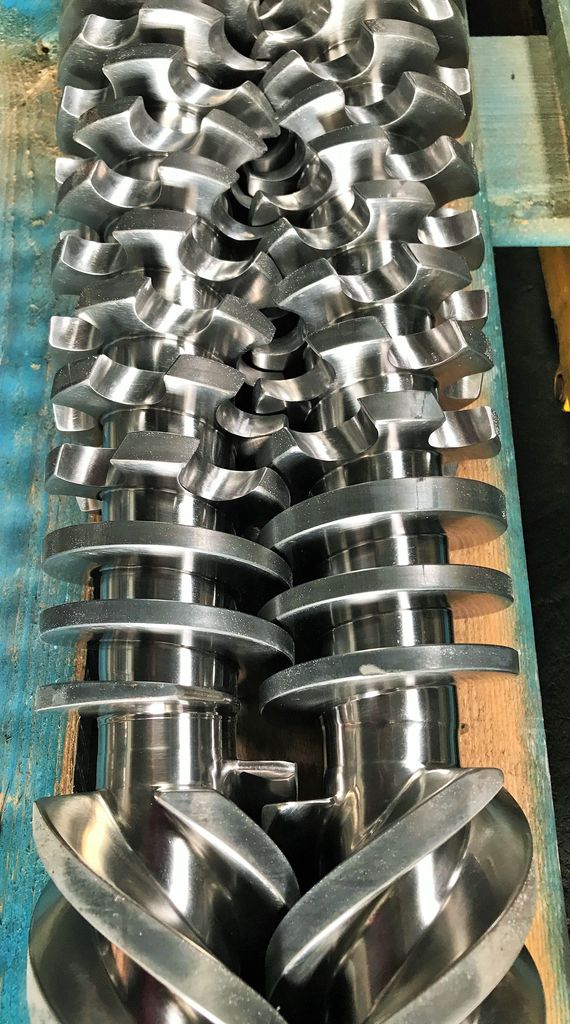

Conical screws (58/125 mm) standard nitrided with molybdenum coating
incl. internal screw core cooling (excellent condition)
Screw geometry for WPC processing type T750.3N9C

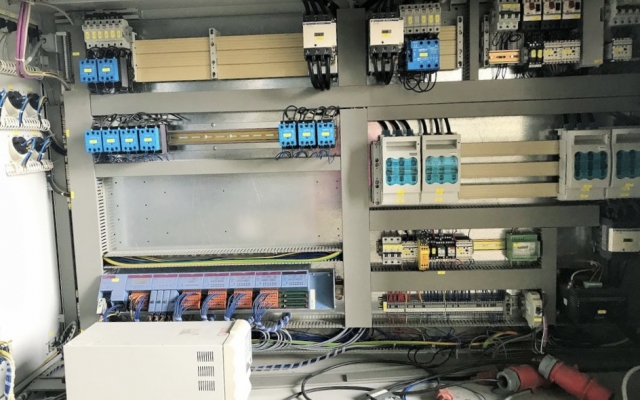

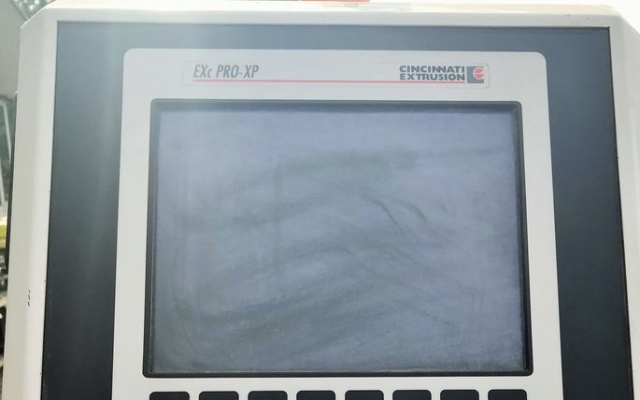

Microprocessor control system EXc Pro-XP
Degassing pump incl. double filter
5+1 heating zones for tooling + adapter

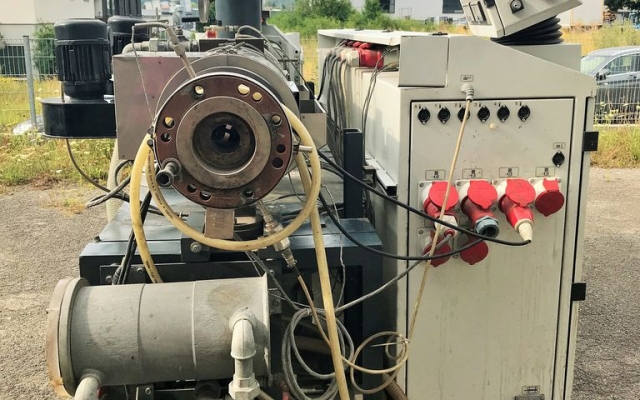

Adaptor incl. melt pressure & temperature sensor
Interface for downstream CIMI 1 / 0 -10 V
Dimension (l x w x h): 2.735 x 1.361 x 2.352 mm, weight: 2.940 kg

Crammer feeder Cincinnati TS58 direct

Existing of: Hopper, feeding screw, motor, adapter, lifting unit
Capacity (at bulk density of 480 g/l): max. 600 kg/h
Gear motor: 2.2 kW, screw speed: 44 rpm
Hopper diameter: 1.008 mm, weight: 840 kg

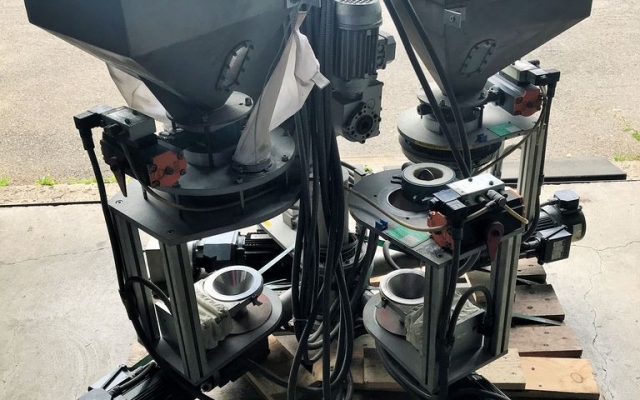

Gravimetric dosing system ConPro KTW

For weighing of up to 4 components
Integration via CanBus into the extruder control EXc Pro-XP
