Clamping frame length: 6.500 mm
2 vacuum pumps (4.6 kW each)
20 vacuum connections 1/2’’
20 water connections 1/2”
Lateral adjustment: +/- 10 mm

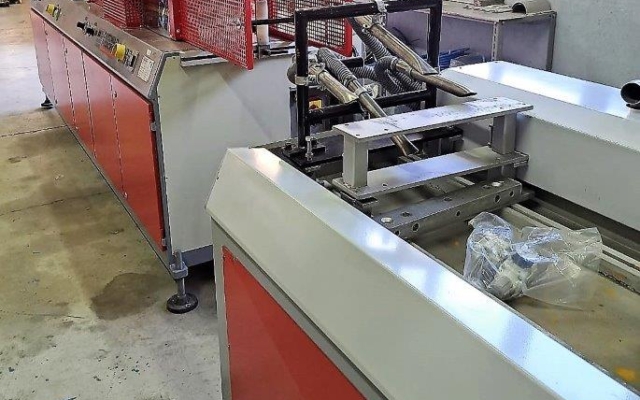

Haul-off/saw combination Cincinnati-Greiner CAT PUL 10/10-235-S
Haul-off force: 10 kN
Extrusion speed: 0.2 – 10 m/min
Drive power: 2 x 2.1 kW
Contact length: 1.000 mm
Number of pads: 108 (NEW)
Max. profile height: 100 mm
Max. profile width: 235 mm
Saw blade diameter: 300 mm
Incl. motorized length movement for calibration table: 500 mm
