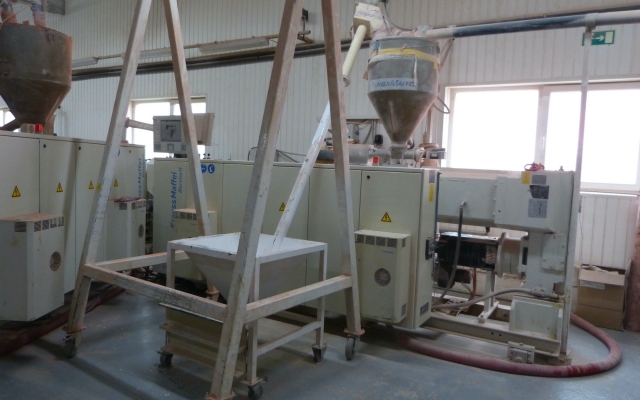

Extruder combination incl. tooling KM for foam core pipes




Year of manufacture:
2009

Pipe range:
∅ 110 - 200 mm

Condition:
ready for operation

Description:

Extruder combination incl. tooling KRAUSS MAFFEI
for PVC foam core pipes ∅ 110 – 200 mm

Description:

Parallel twin screw extruder KRAUSS MAFFEI KMD 90-32/P
Output range: 180 - 390 kg/h (depending on material and tooling)
Main motor: 44 kW (AC-drive)
Screw diameter: 90 mm, L/D = 32
Screw speed: up to 22 rpm
Control system Krauss Maffei C5
Max. connection power/fuse: 188.4 kW/ 285A

Conical twin screw extruder KRAUSS MAFFEI KMD 50 K/R
Output rate: up to 220 kg/h (depending on material and tooling)
Main motor: 35 kW (AC-drive)
Screw diameter: 50 – 93 mm conical
Screw speed: up to 54 rpm
Control system Krauss Maffei C5
Max. connection power/fuse: 132.5 kW/ 205A

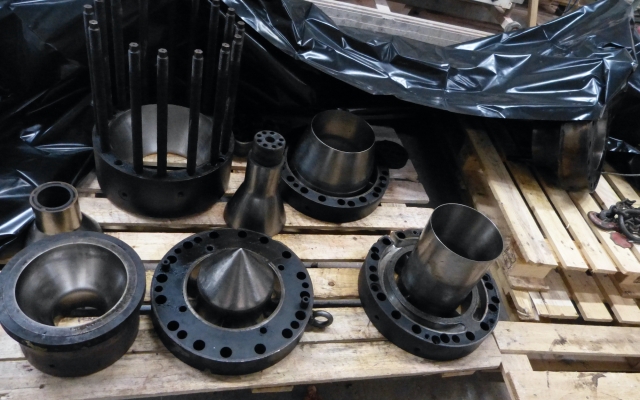

Pipe head incl. feed block KRAUS MAFFEI KM-3L 42

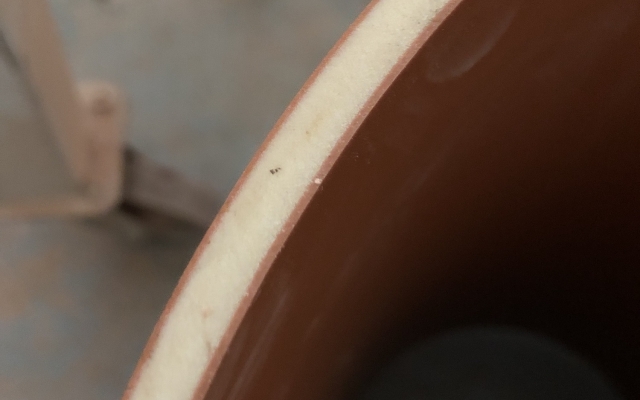

for the production of PVC foam core pipes PN 6
incl. die sets for 110 x 3.2 / 125 x 3.7 / 160 x 4.7 / 200 x 5.9

Condition:
in production until Nov. 2019

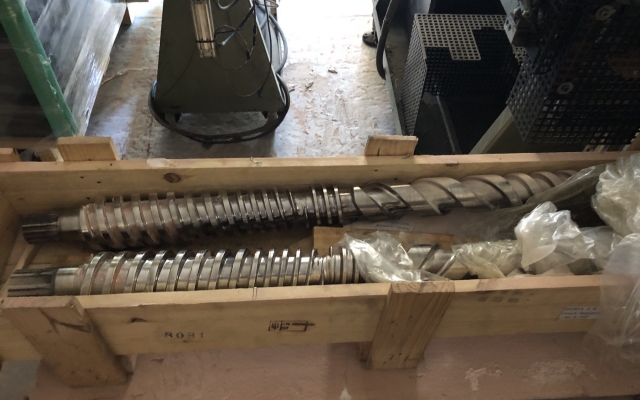

Several spare parts (screws & barrel etc.) are included
