Co-extruder Cincinnati CE 30-C




Year of manufacture:
2009

Output rate:
up to 15 kg/h

Condition:
ready for operation

Description:

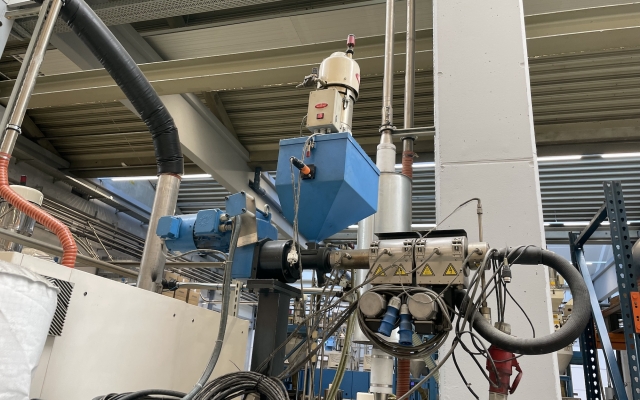

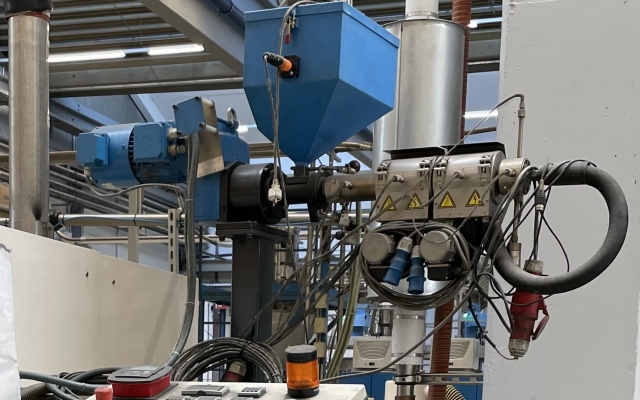

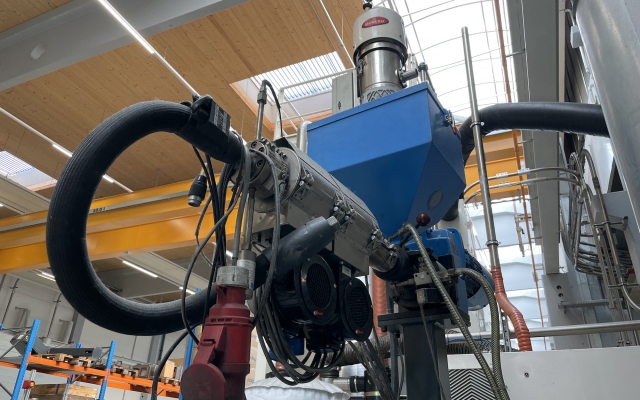

Single screw extruder Cincinnati CE 30-C

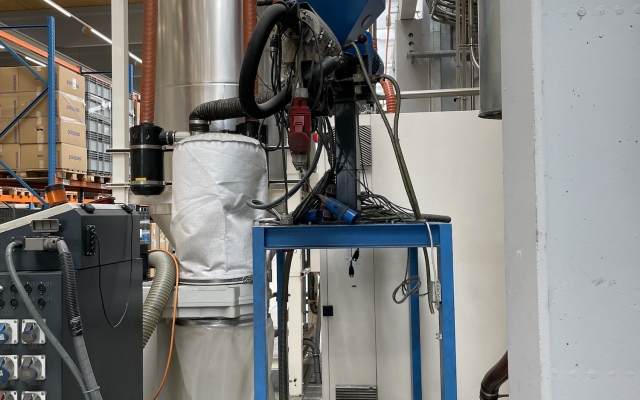

Consisting of: machine column, main drive, reduction gear,
screw & barrel, hopper incl. level indicator, Moretto material conveyor,

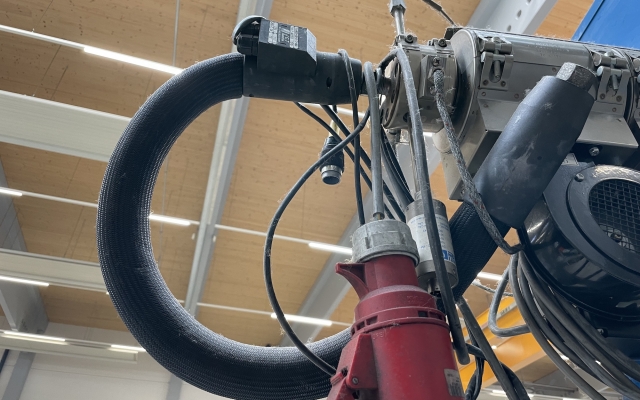

extrusion hose, switch cabinet incl. control panel
Output reate: PP: 10 kg/h, PE: 12 kg/h, PVC: 15 kg/h
Motor: 7.5 kW (AC-drive)
Screw diameter: 30 mm
Effective screw length: 750 mm
Max. screw speed 160 rpm
Melt pressure & temperature sensor
Number of barrel heating zones: 3 pcs. á 1,5 kW

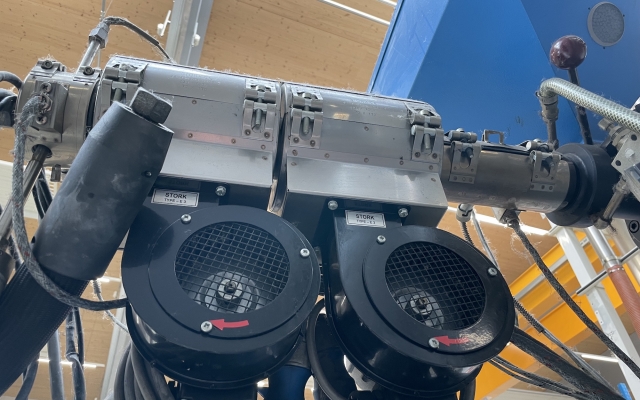

Number of cooling blowers: 2 pcs. á 5 kW
Total connecting power: 19 kW

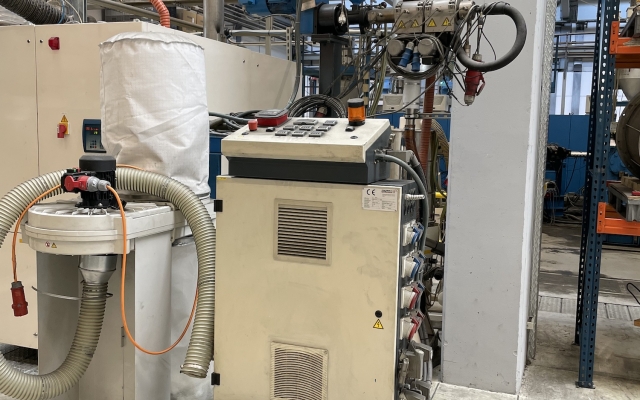

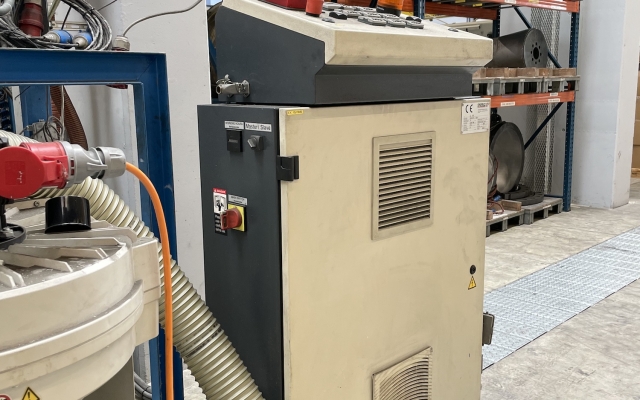

Switch cabinet incl. SecuRe control

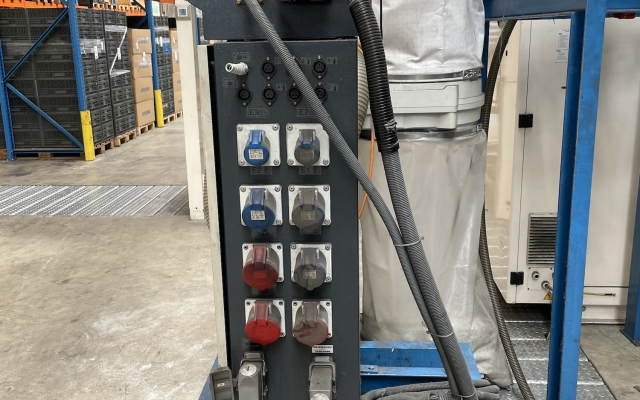

Interfaces for downstream equipment
Dimensions (l x w x h): 1.607 x 404 x 1.600 mm, weight ca.: 600 kg

Condition:
very good, ready to use
